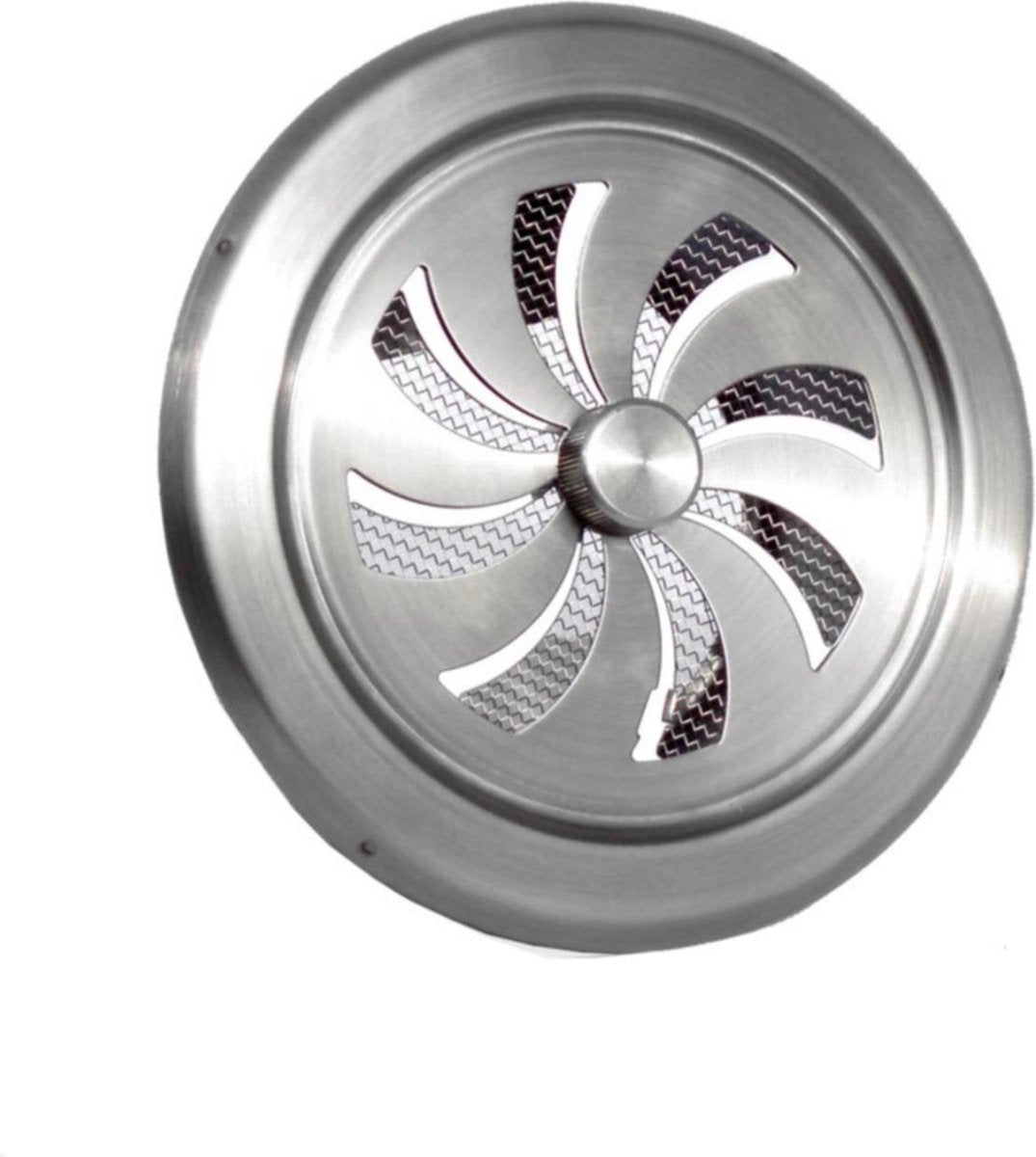

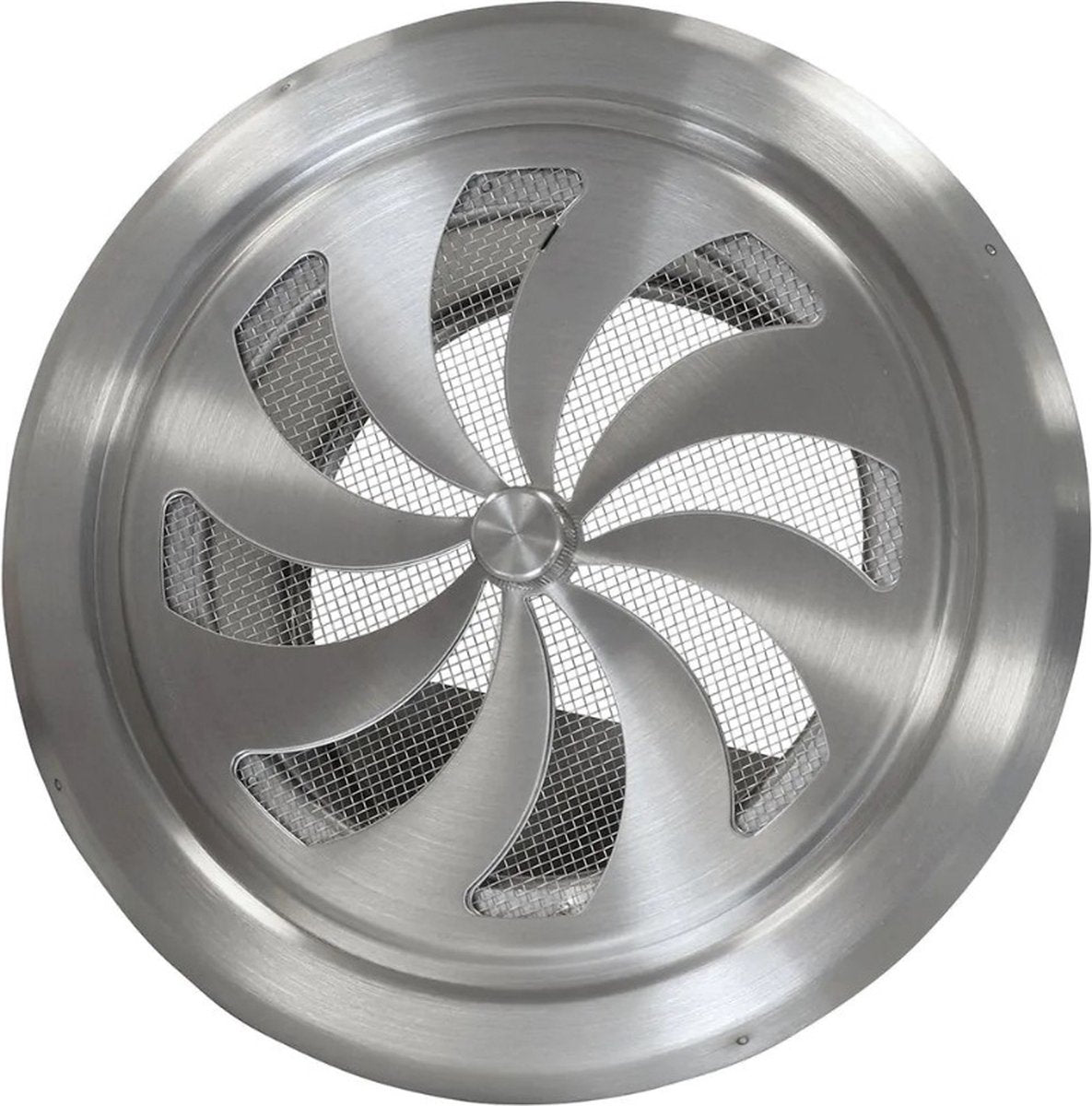

Lockable Grille Valve Round Ø100mm - Stainless Steel

Lockable Grill Valve Round Ø100mm – Brushed Stainless Steel

Introducing our latest product: the RVS304 air grille with a connection size of 100 mm. With an outer diameter (D1) of 145 mm and a connection sleeve diameter (D) of 97 mm, this grille offers an efficient and stylish solution for your ventilation system.

• The connection sleeve has a length (L) of 53 mm, allowing the grille to be easily connected to the air duct. With an air passage of 0 to 21 cm², you can regulate the airflow as desired, ensuring optimal ventilation at all times.
• The RVS304 material is known for its durability and corrosion resistance. The surface of the grille is brushed matte and K320 ground, which provides a modern and attractive appearance.
• The installation of this air grille is easy thanks to the clamp connection. This allows you to quickly and firmly attach the grille without extra tools.

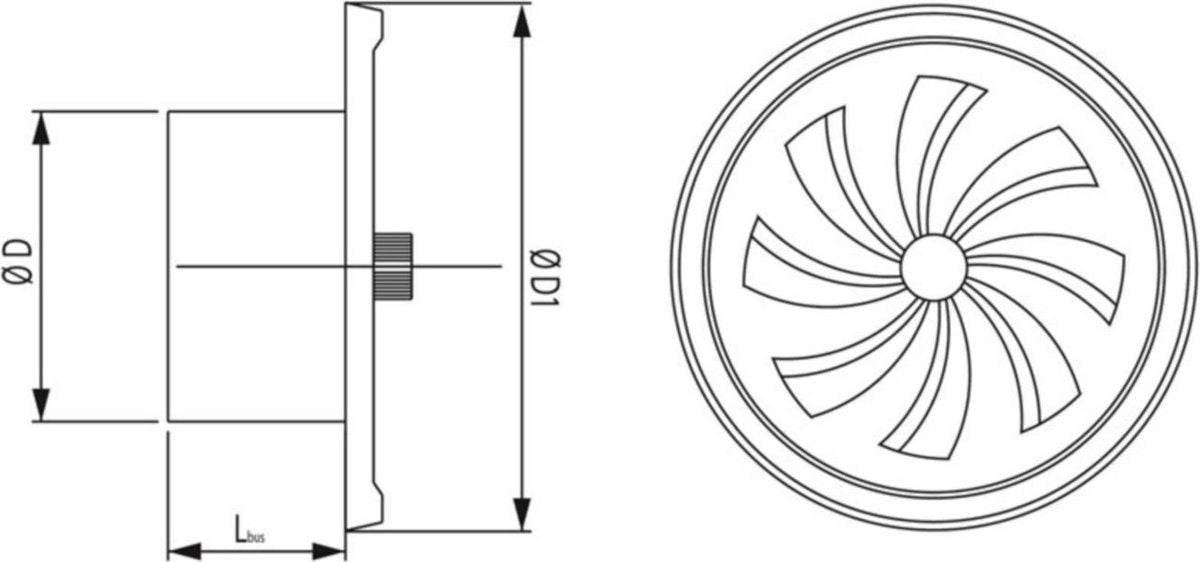

The specifications of the RVS lockable round grill 100mm

Air duct connection size: 100 mm
Outer diameter (D1): 145 mm
Connection sleeve diameter (D): 97 mm
Connection sleeve length (L): 53 mm
Air passage: 0 – 21 cm²
Material: RVS304
Surface: Brushed matte / K320 ground
Mounting: Clamp connection
