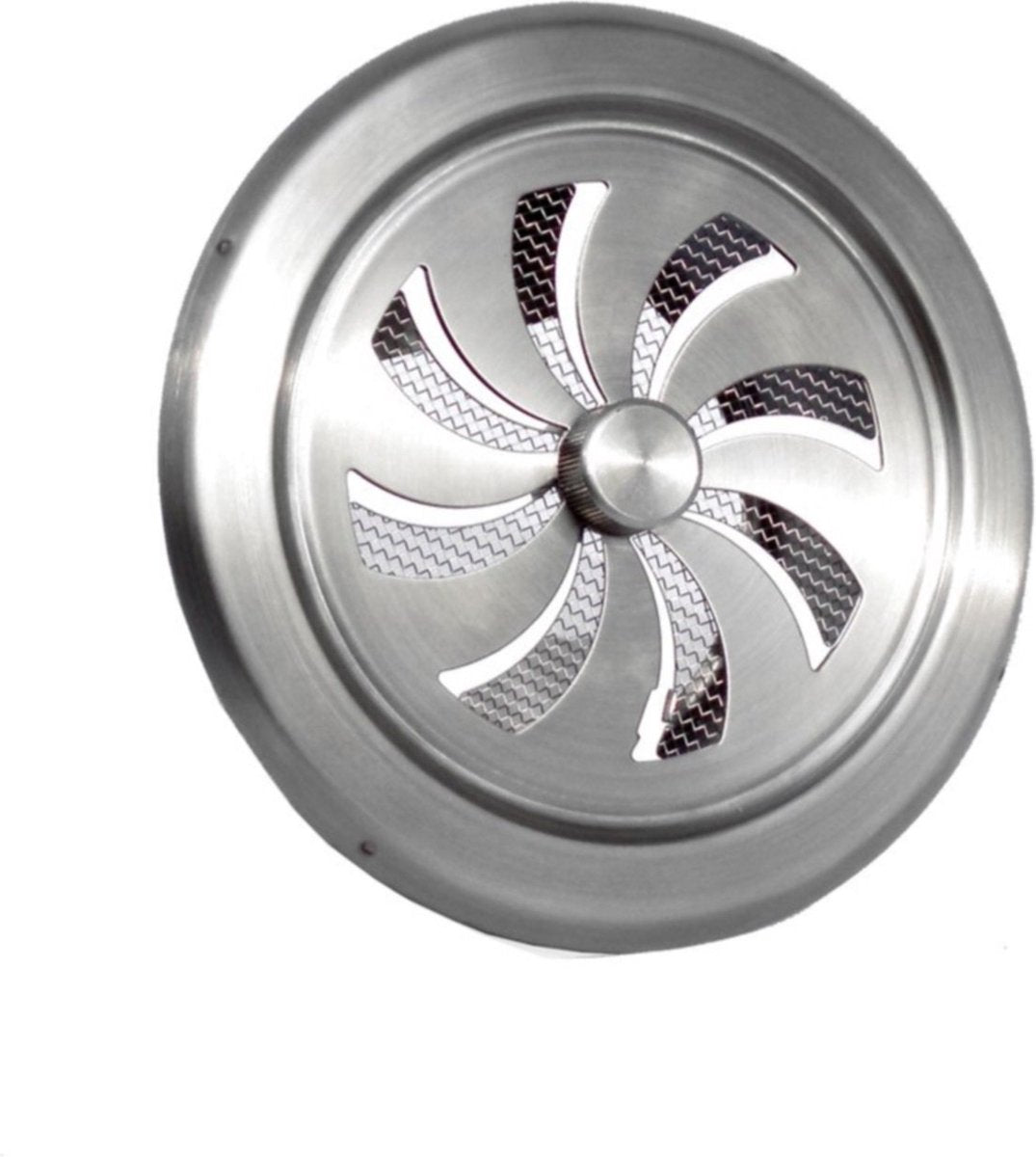

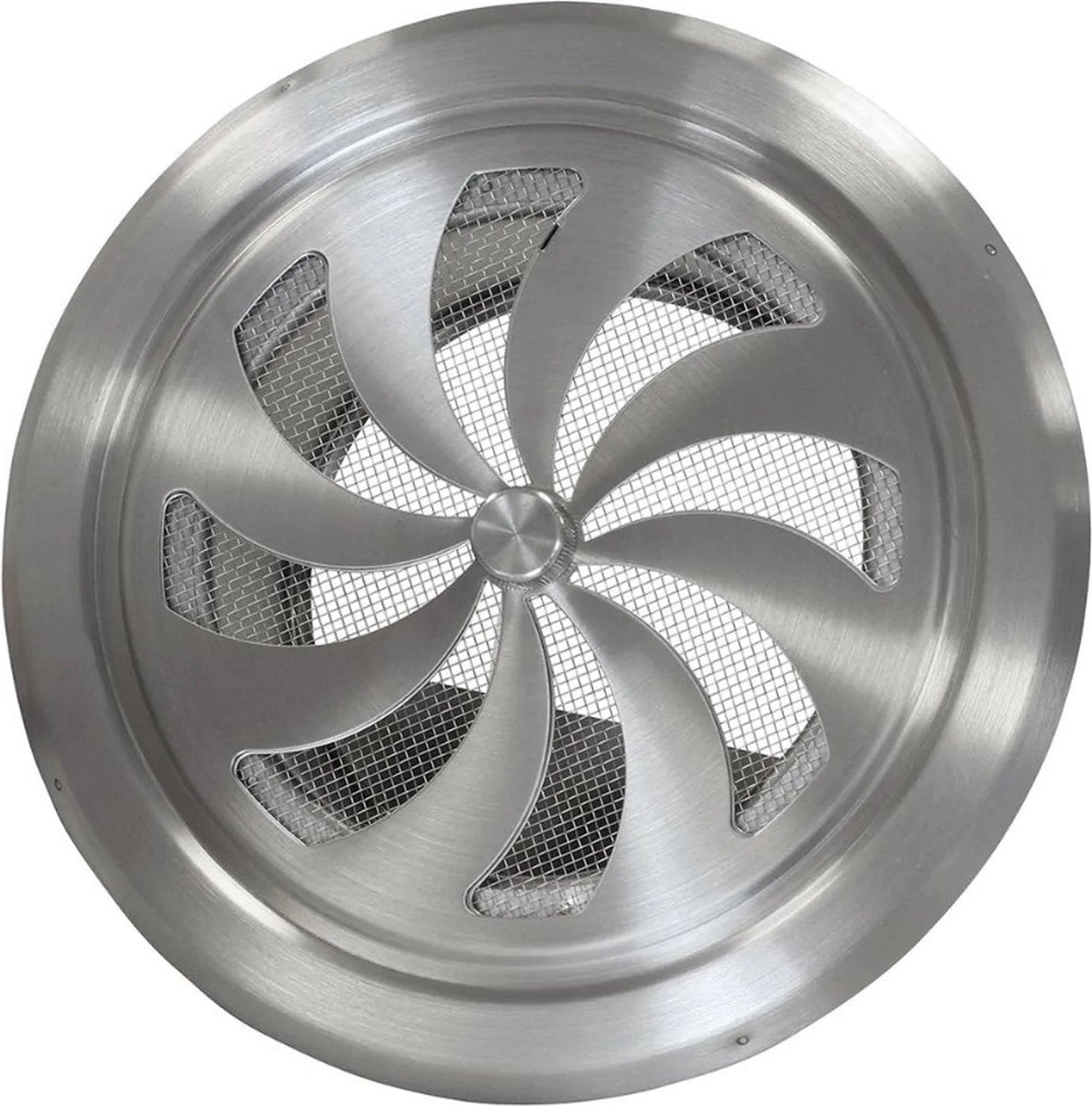

Lockable Grille Valve Round Ø100mm - Stainless Steel

Lockable Grille Valve Round Ø100mm – Brushed Stainless Steel

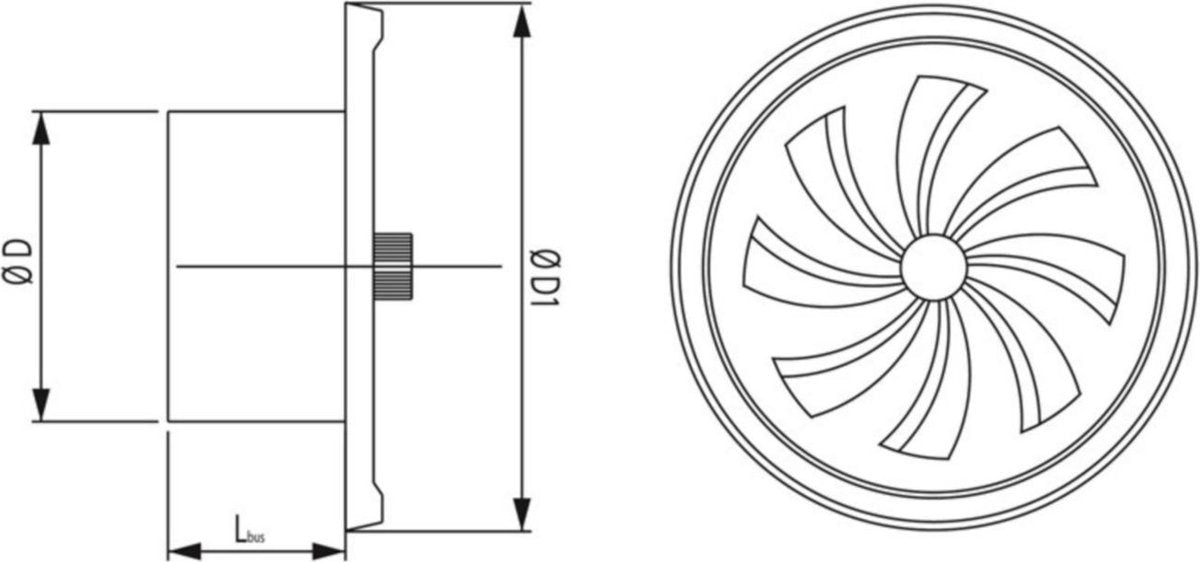

Meet our latest product: the RVS304 air grille with a connection size of 100 mm. With an outer diameter (D1) of 145 mm and a connection sleeve diameter (D) of 97 mm, this grille offers an efficient and stylish solution for your ventilation system.

• The connection sleeve has a length (L) of 53 mm, allowing the grille to be easily connected to the air duct. With an airflow of 0 to 21 cm², you can regulate the airflow as desired, ensuring you always enjoy optimal ventilation.
• The RVS304 material is known for its durability and corrosion resistance. The surface of the grille is matt brushed and K320 ground, which provides a modern and attractive appearance.
• The installation of this air grille is easy thanks to the clamp connection. This allows you to quickly and securely attach the grille without additional tools.

Specifications of the RVS lockable grille round 100mm

Air duct connection size: 100 mm
Outer diameter (D1): 145 mm
Connection sleeve diameter (D): 97 mm
Connection sleeve length (L): 53 mm
Airflow: 0 – 21 cm²
Material: RVS304
Surface: Matt brushed / K320 ground
Mounting: Clamp connection
