Set Flexibel Zonnepaneel 100Wp 12V Caravan, Camper, Boot, Tent of Tuinhuisje - Victron Energy BlueSolar PWM 10A LCD&USB laadregelaar - Zonnepaneel Compleet Pakket - Dakdoorvoer - Plug-Play set schematische tekening en handleiding-Monokristallijn

All benefits at a glance:

• The set is plug & play
• The set comes with step-by-step instructions, a schematic drawing, and a manual from Victron Energy
• The panel also works on cloudy days
• The Victron Energy charge controller is equipped with two USB ports and an LCD screen
• This set has a fuse & all products have the CE mark
• Need more or less solar panel cable? Let us know in advance, as this is also possible

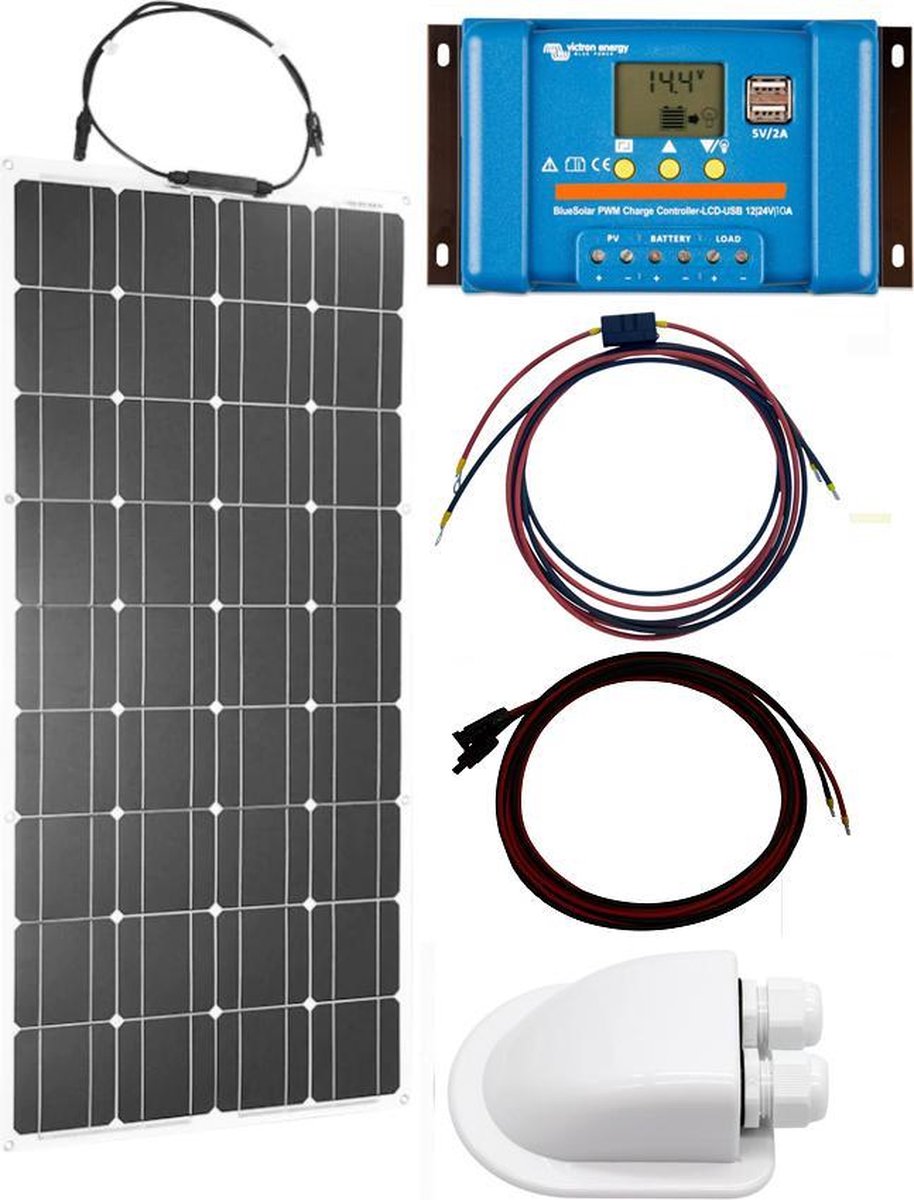

This set contains:

• 1 x 100Wp solar panel
• 1 x Victron BlueSolar PWM-LCD&USB 12/24V-10A (includes a manual)
• 1 x schematic drawing + step-by-step instructions
• 1 x roof gland

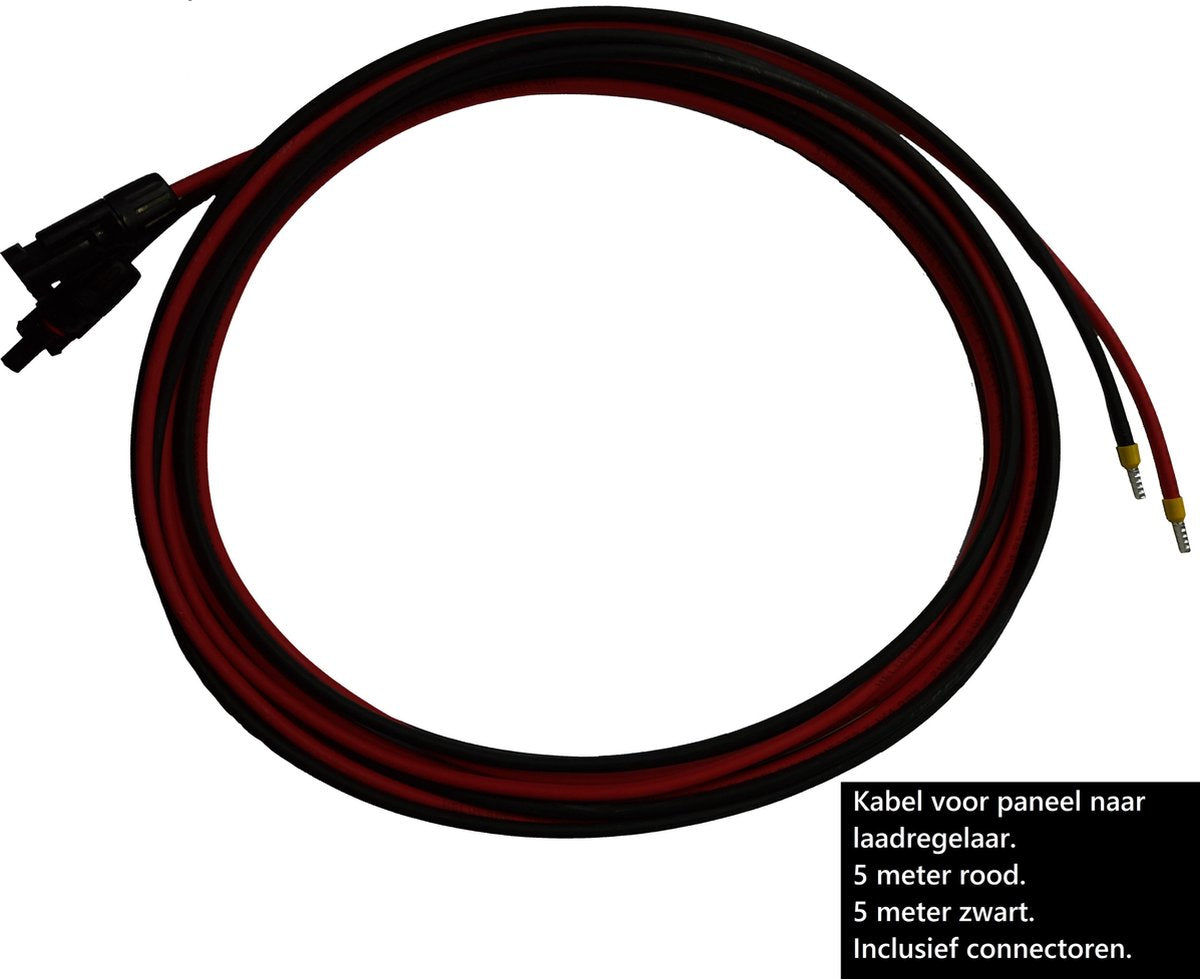

• 5 meters red cable (cable from solar panel to charge controller)
• 5 meters black cable (cable from solar panel to charge controller)

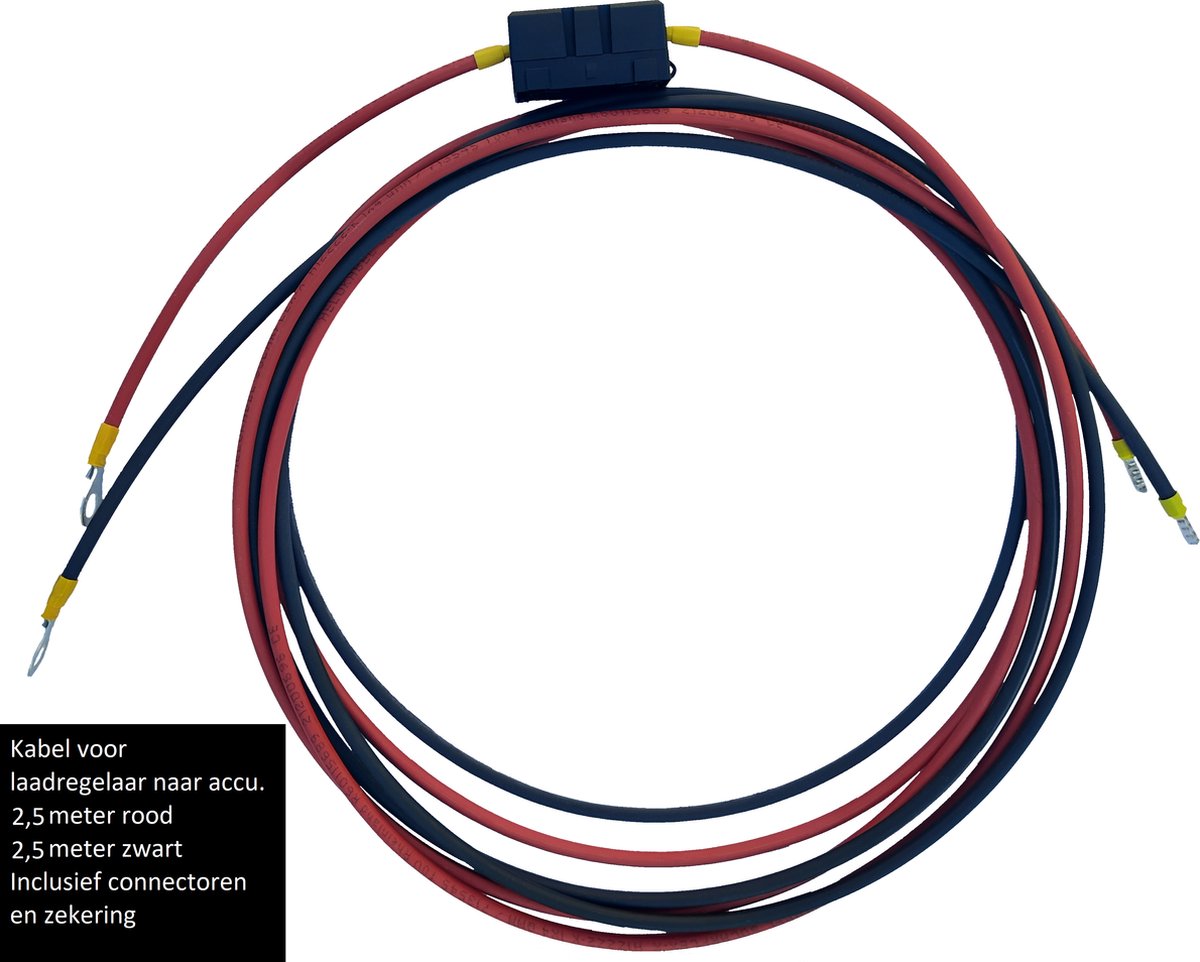

• 2.5 meters red cable (cable from charge controller to battery)
• 2.5 meters black cable (cable from charge controller to battery)
• All cables are equipped with connectors
• Always technical support from JaDa Consumentenartikelen

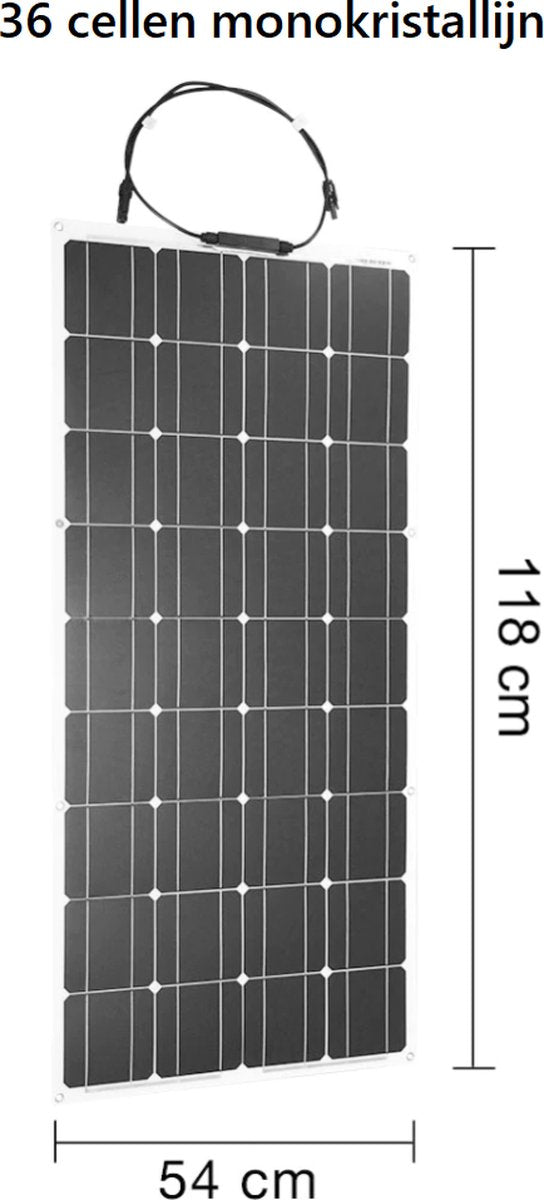

Information about the panel:

• Maximum Power (Pmax) 100 W
• Open Circuit Voltage (Voc) 22.50 V
• Short Circuit Current (Isc) 5.81 A
• Maximum Power Voltage (Vmp) 18.00 V
• Maximum Power Current (Imp) 5.56 A
• Dimensions: 1180 * 540 * 2MM
• Weight: 1.10kg

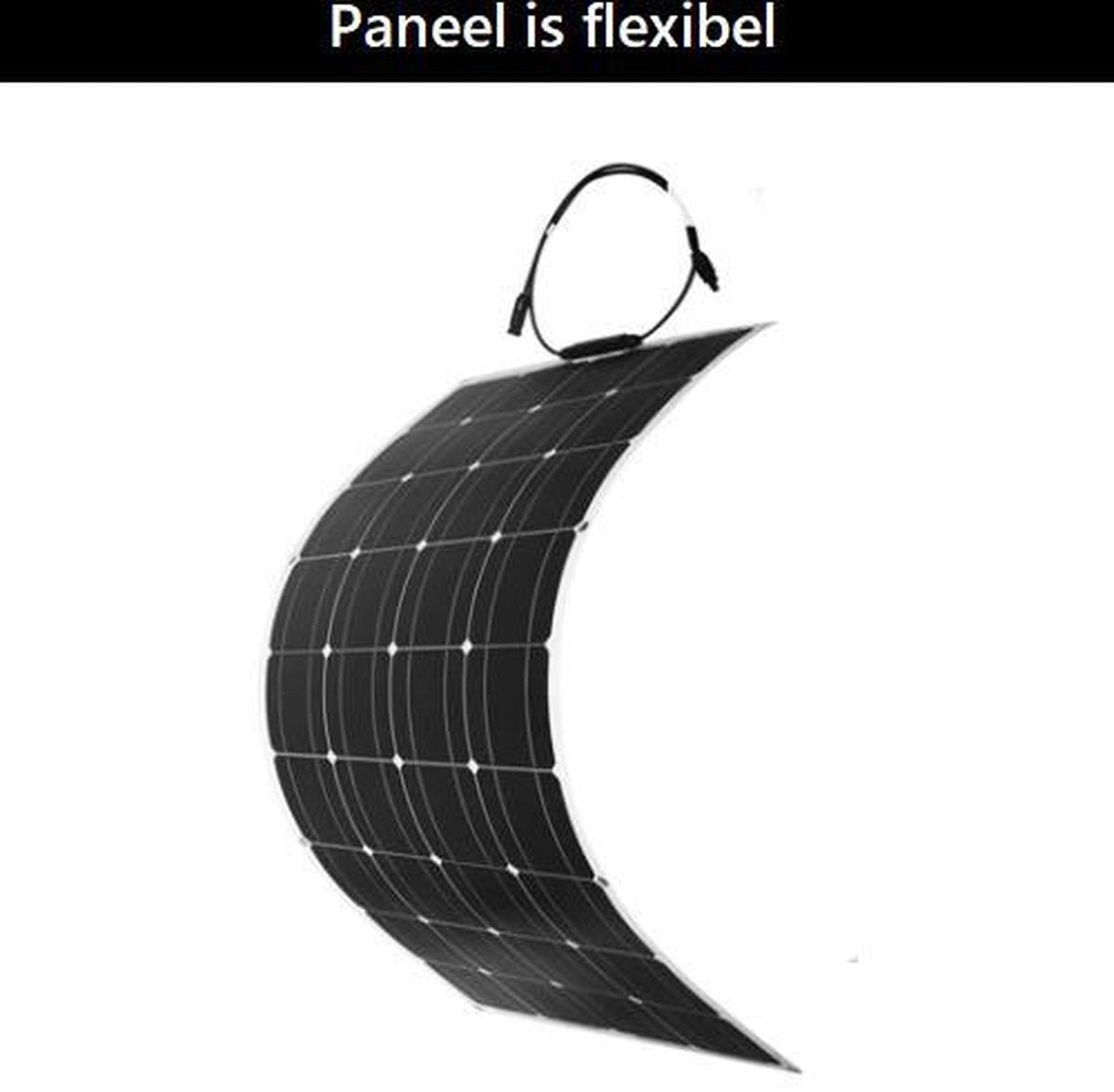

• Panel is flexible
• Monocrystalline

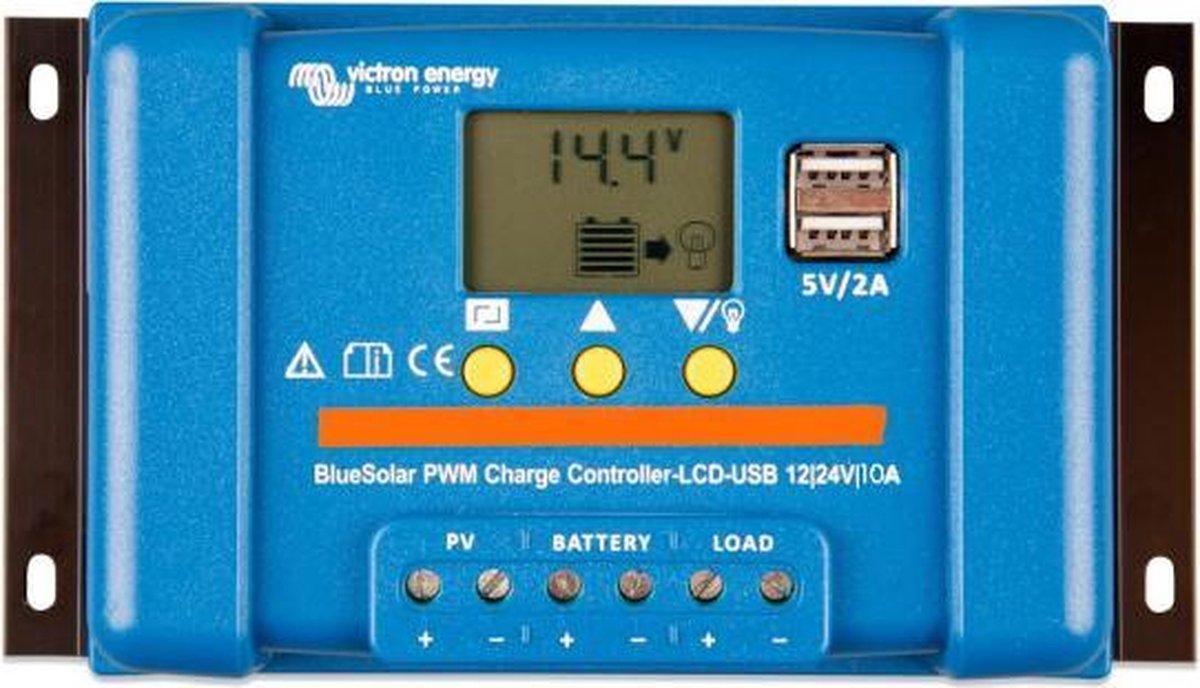

Information about the charge controller:
The charge controller has an LCD screen for status monitoring and settings. The charge controller also has two USB ports, and the solar charger is equipped with automatic load disconnection.
Protection against overcurrent, short circuit, and reverse polarity connection of the solar panels and/or battery.

Information about the cable
The cable contains all connectors for connection. In addition, a fuse is built into the cable.
Cable from solar panel to charge controller is 4mm2.
Cable from charge controller to battery is 4mm2.

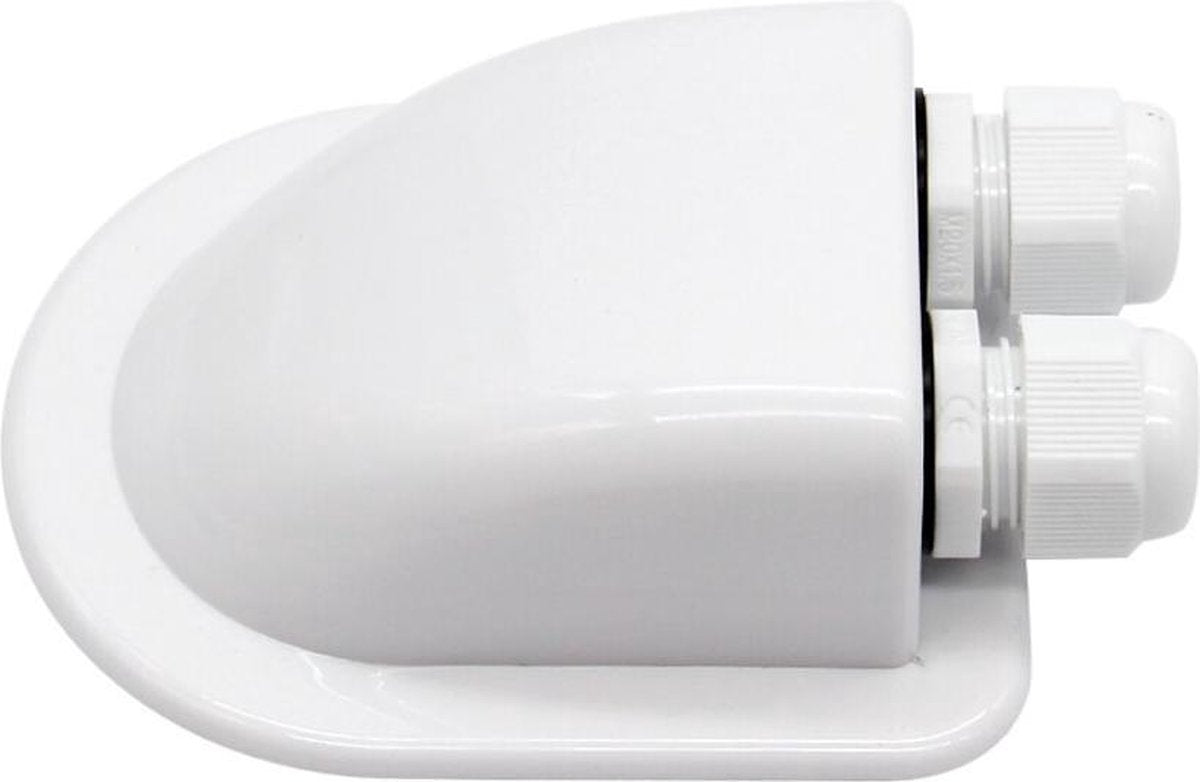

Information about the roof gland
Provides the ability to get the cable inside the caravan or boat without water getting in.

Good to know

• The panels can be attached with sealant, or via the mounting points on the side
• This set is for a 12V system

Why choose us?
JaDa Consumentenartikelen offers a complete solar panel set at a competitive price. Moreover, you can always contact us with questions, both before and after the purchase! We also stand for quality; we have consciously chosen to offer a weather-resistant panel. This is also evident in the Victron Energy charge controller, one of the best brands on the market.

Additional information
The charge controller is suitable for the following batteries: AGM, GEL, Flooded, or LiFePO4 batteries (only for lithium batteries with internal BMS).

Never connect 2 different types of panels to 1 charge controller, i.e., panels with different specifications. This is important for safety and efficiency.

Solar panels can get hot.
Please ensure that the surface on which the solar panels are installed can withstand this. Otherwise, the paint, for example, might bubble.

If you are going to use sealant for mounting: choose a heat/UV-resistant sealant, such as Sikaflex 252 (also check if the sealant can be bonded to your surface).

This product may only be sold by JaDa Consumentenartikelen. The cable is made by JaDa Consumentenartikelen and is not sold separately, which means no one else can offer the set as the cable belongs to JaDa Consumentenartikelen. Technical support is also provided by JaDa Consumentenartikelen.
