Set Flexibel Zonnepaneel 200Wp 12V Caravan, Camper, Boot, Tent of Tuinhuisje - Victron Energy BlueSolar PWM 20A LCD&USB laadregelaar - Zonnepaneel Compleet Pakket - Plug & Play set inclusief schematische tekening en handleiding - Monokristallijn

All benefits at a glance:

• The set is plug & play
• The set comes with step-by-step instructions, a schematic drawing, and a Victron Energy manual
• The panels also work on cloudy days
• The Victron Energy charge controller features two USB ports and an LCD screen
• This set has a fuse & all products have the CE mark
• Need more or less solar panel cable? Let us know in advance, as this is also possible

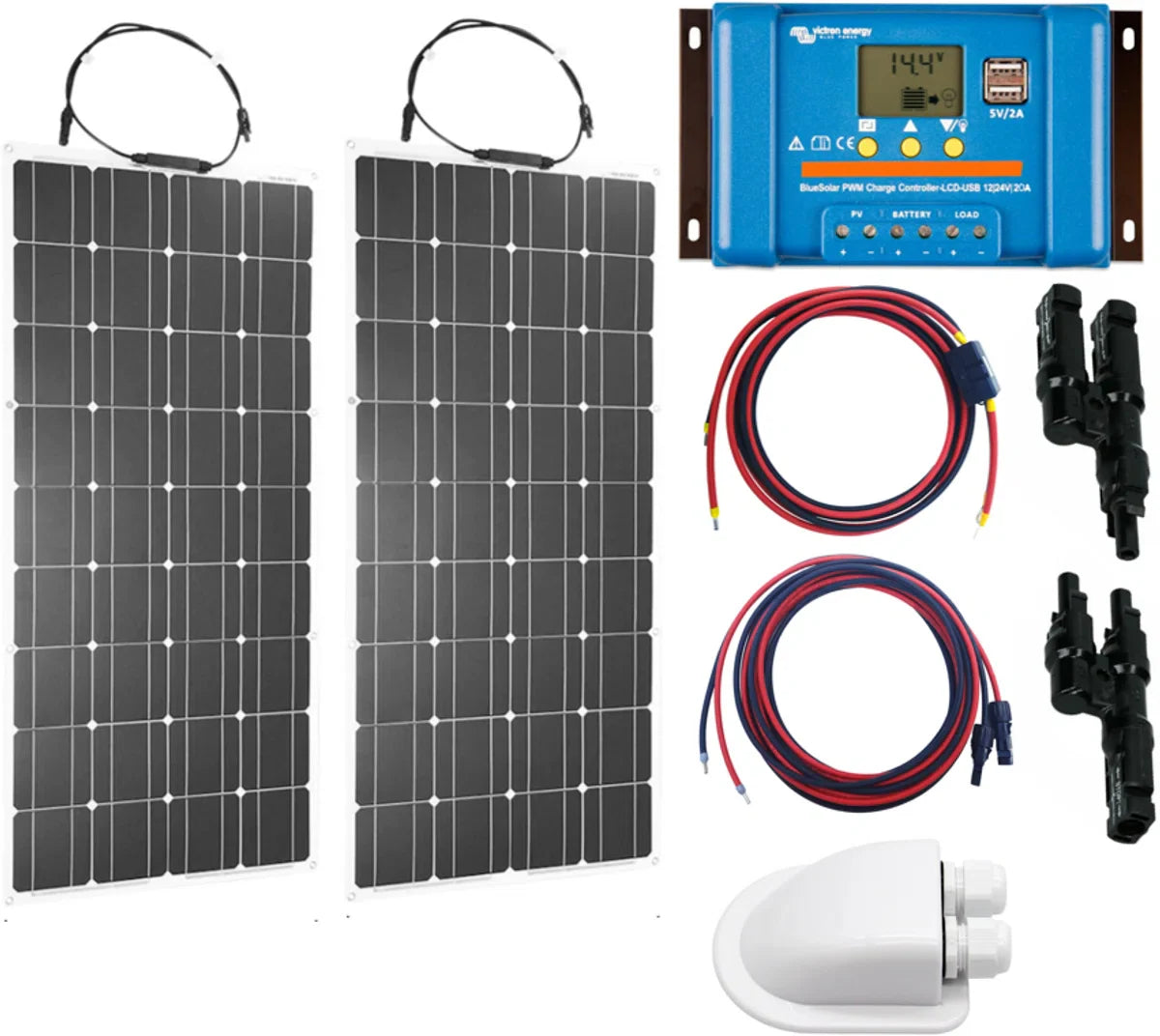

The set includes:

• 2 x solar panel 110Wp
• 1 x Victron BlueSolar PWM-LCD&USB 12/24V-20A (this also includes a manual)
• 1 x schematic drawing

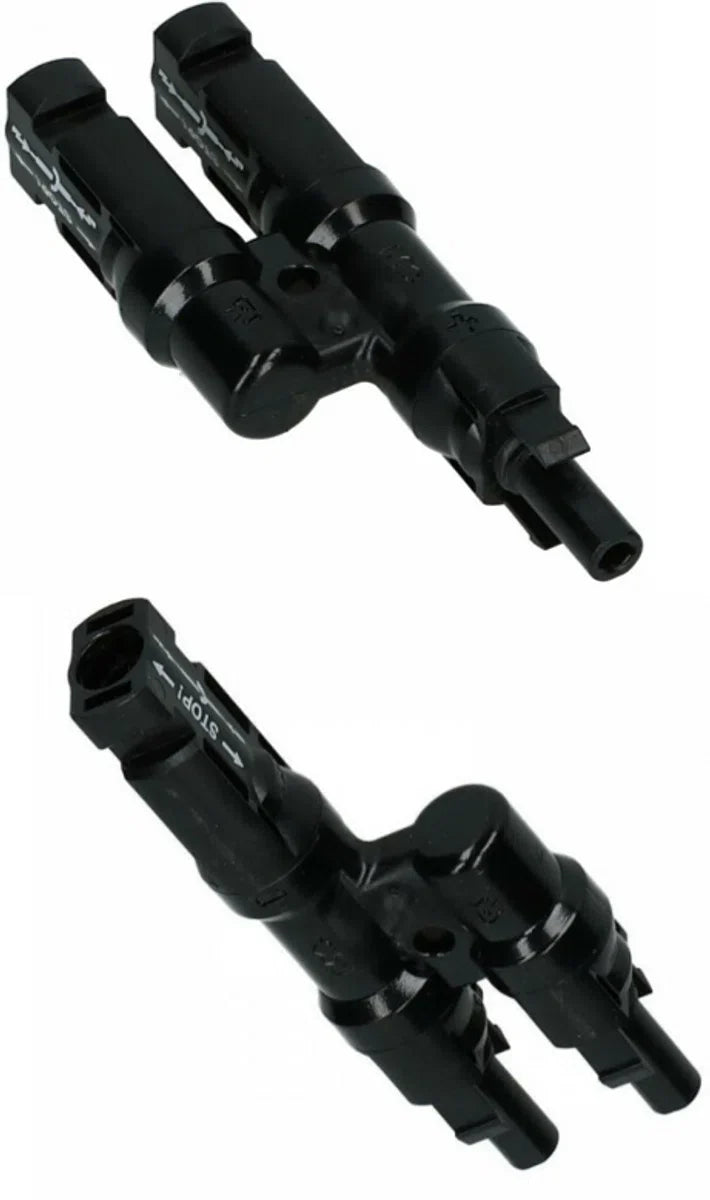

• 1 x splitter set
• 1 x roof gland
• 5 meters red cable (cable for solar panel to charge controller)
• 5 meters black cable (cable for solar panel to charge controller)
• 2.5 meters red cable (cable for charge controller to battery)
• 2.5 meters black cable (cable for charge controller to battery)
• All cables are equipped with connectors
• Always technical support from JaDaStroom

Information about the panel:

• Maximum Power (Pmax) 110Wp
• Open Circuit Voltage (Voc) 24.50V
• Short Circuit Current (Isc) 5.53A
• Maximum Power Voltage (Vmp) 20.9V
• Maximum Power Current (Imp) 5.27A

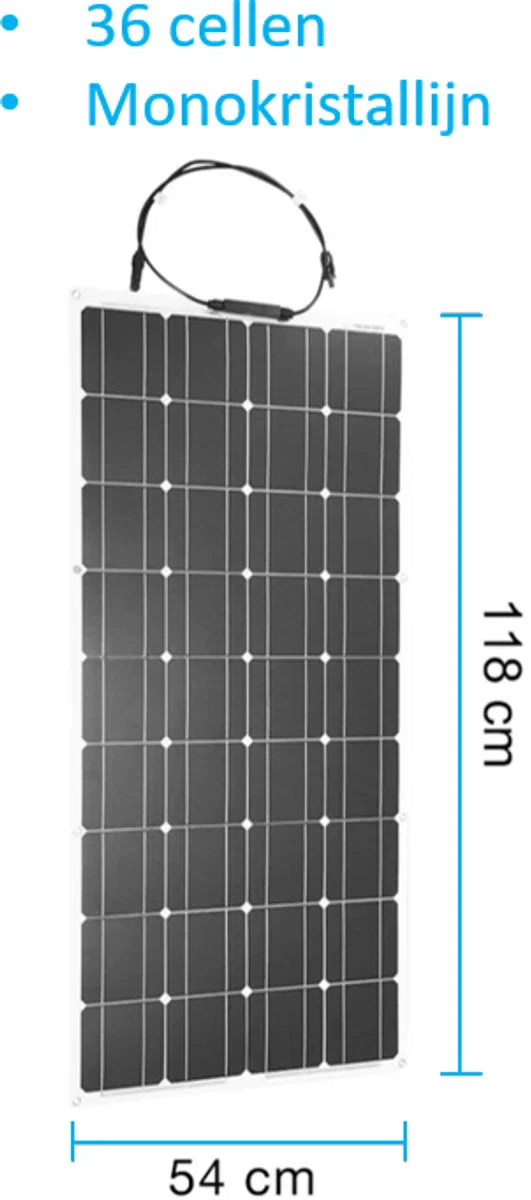

• Dimensions: 108 * 54 * 0.2cm
• Solar panel cable length: 30cm
• Weight: 2kg

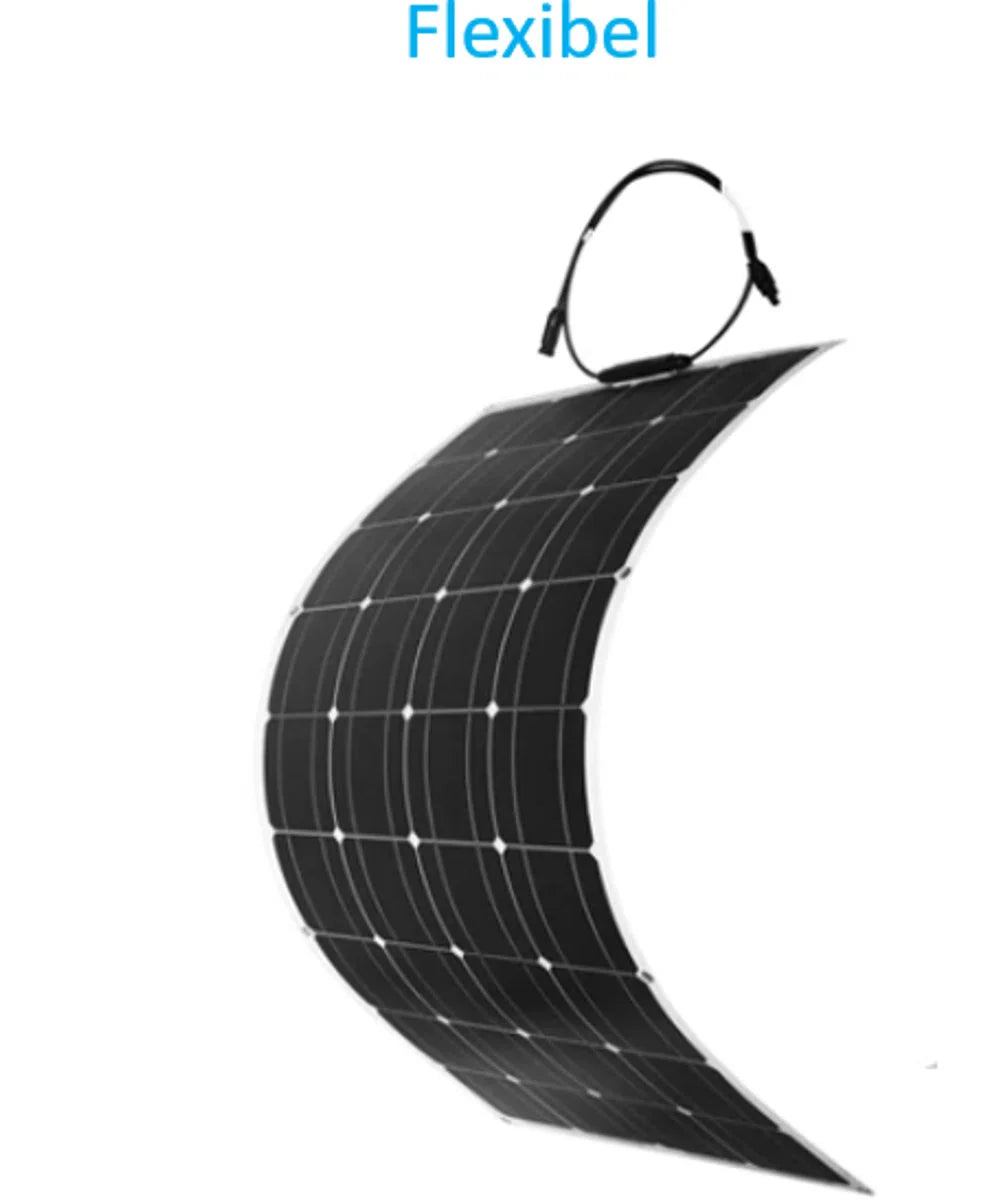

• Panel is flexible
• Monocrystalline

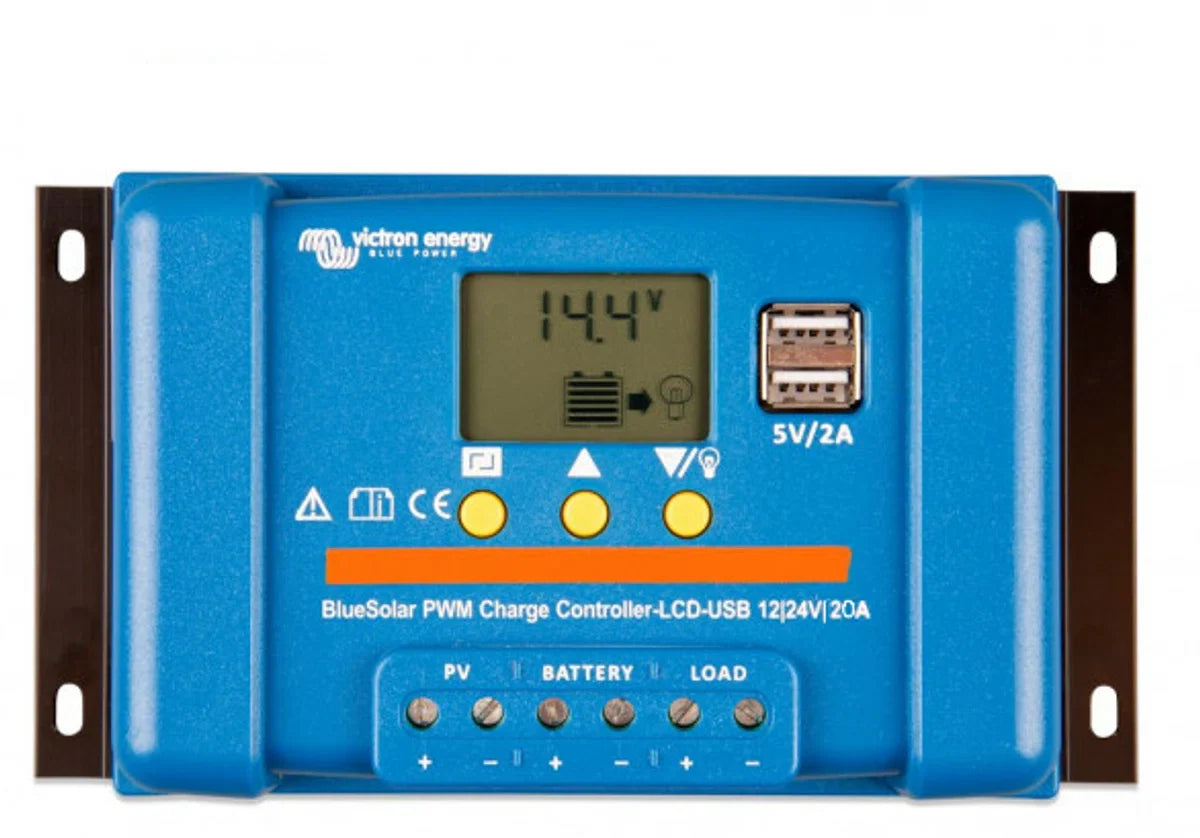

Information about the charge controller:
The charge controller has an LCD screen for status control and settings. The charge controller also has two USB ports, and the solar charger is equipped with automatic load disconnection.
Protection against overcurrent, short circuit, and reverse polarity connection of the solar panels and/or battery.

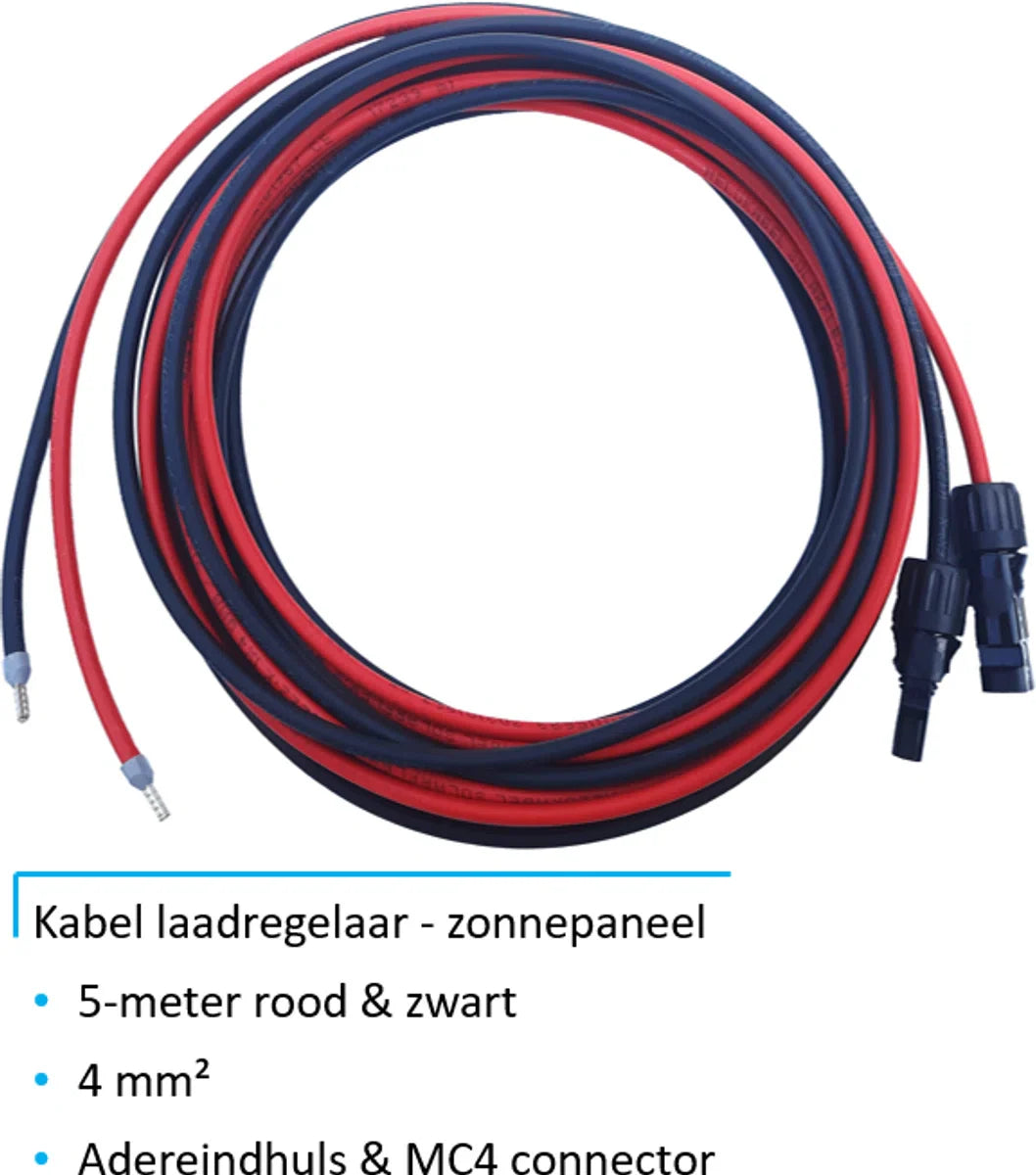

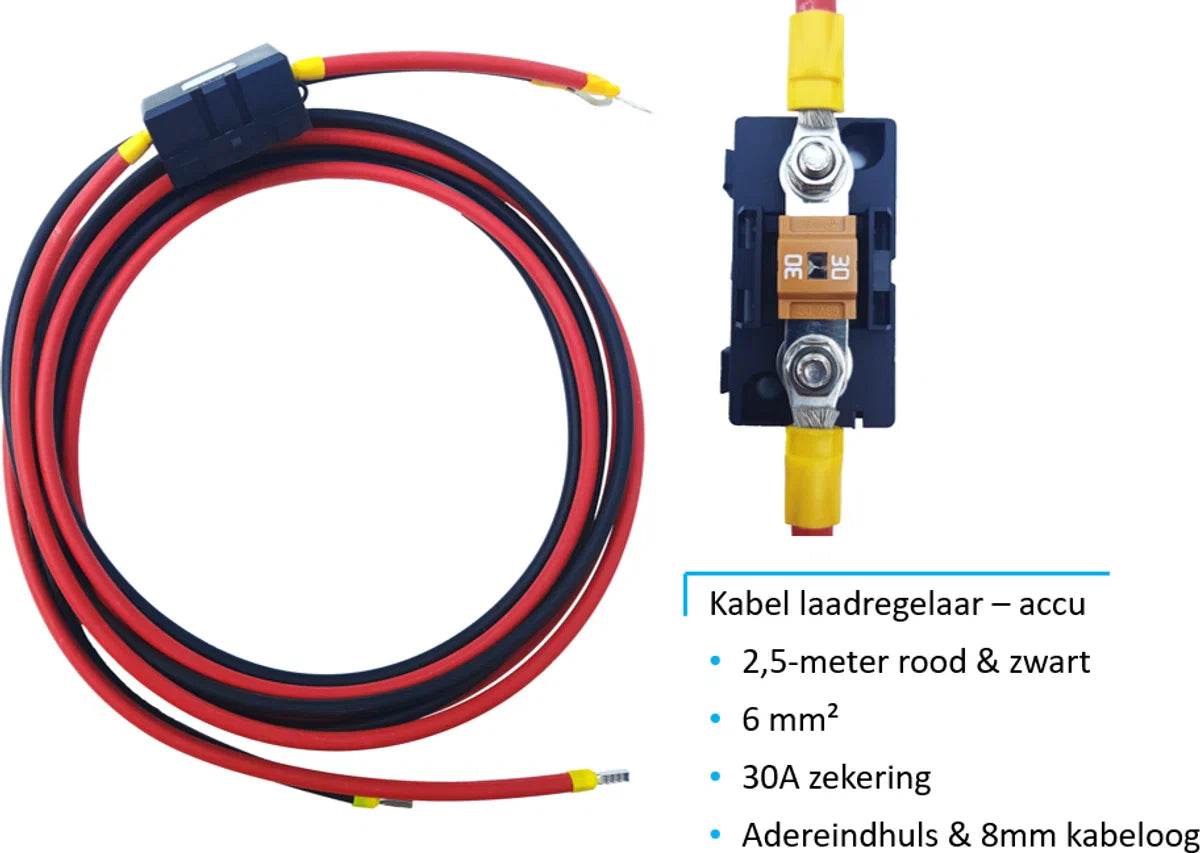

Information about the cable
The cable includes all connectors for connection. In addition, a fuse is built into the cable.
Cable from solar panel to charge controller is 4mm2.
Cable from charge controller to battery is 6mm2.

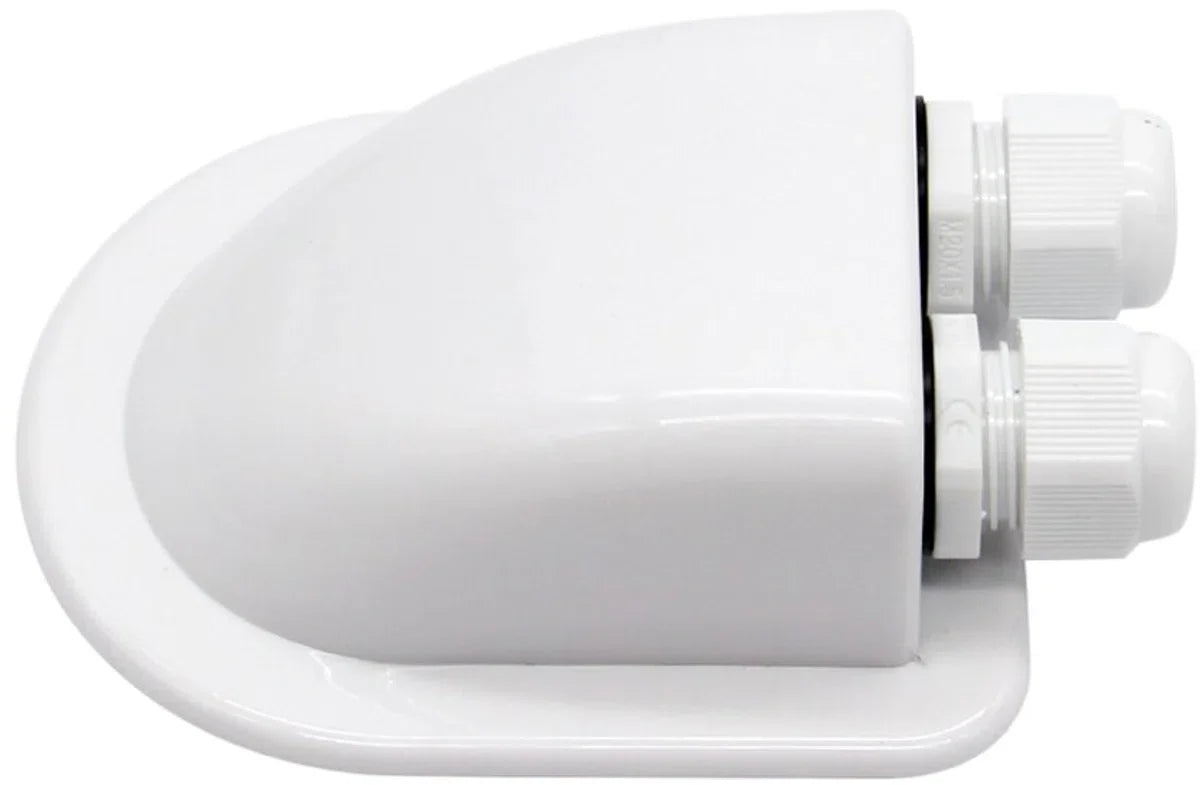

Information about the roof gland
Provides the possibility to route the cable inside the caravan or boat without water entering.

Good to know

• The panels can be mounted with sealant, or via the mounting points on the side
• This set is for a 12V system

Why choose us?
JaDa Consumer Products offers a complete solar panel set at a competitive price, and you can always contact us with questions both before and after purchase! In addition, we stand for quality; we have deliberately chosen to offer a weather-resistant panel. This is also evident in the Victron Energy charge controller, one of the best brands on the market.

Additional information
The charge controller is suitable for the following batteries: AGM, GEL, Flooded, or LiFePO4 batteries (only for lithium batteries with internal BMS).

Never connect 2 different types of panels to 1 charge controller, i.e., panels with different specifications. Due to safety and efficiency.

The solar panels can get hot.
Please consider that the surface on which the solar panels are placed can withstand this. Otherwise, for example, the paint may bubble.

If you are going to use sealant for mounting: choose a sealant that is heat/UV resistant, for example, Sikaflex 252 (also check if the sealant can be bonded to your surface).

This product may only be sold by JaDa Consumer Products. The cable is made by JaDa Consumer Products and is not sold separately, so no one else can offer the set as the cable belongs to JaDa Consumer Products. Technical support is also provided by JaDa Consumer Products.
